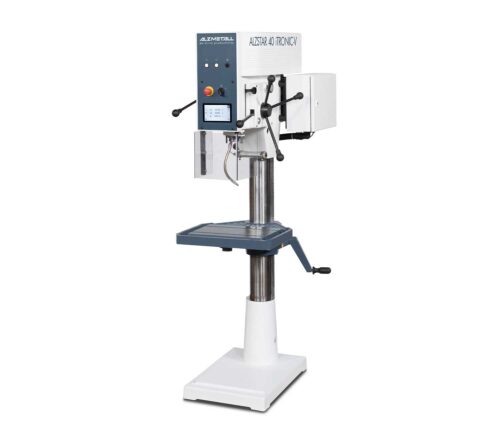

ALZSTAR 40 iTRONIC-V

Column Drilling Machines
Product variant: ALZSTAR 40/SV

The START-UP-Range for reduced budgets.

Request product
Machine concept

Drilling Capacity Steel E335 (St 60) [mm]

Tapping performance steel E335 (St 60) [mm]

Spindle, short

Distance spindle to column [mm]

Table clamping area [mm]

Distance spindle - table min./max. [mm]

Column diameter [mm]

Z-travel of spindle [mm]

Feed

Power [KW]

Motor 1 [MIN-1]

Spindle Rpm range | Option 1 [U/MIN-1]

Touchscreen

Standard Equipment

  • 7“ TFT – LCD-MULTI-TOUCH Display
  • Infinitely variable speed drive
  • Spindle protection
  • Push button for starting the Right turn (CW), Push Button for starting the Left turn (CCW), Push Button for Spindle off starting the Left turn (CCW), Push Button for Spindle off
  • EMERGENCY-OFF switch
  • Main switch
  • Right (CW) and Left (CCW) rotation
  • Control Tension 24 Volts
  • Protection Clas IP 54
  • Lacquer
  • Overload Feed Protection Switch (ALZSTAR 40 iTRONIC-V) Machine oil in separate bin (ALZSTAR 40 iTRONIC-V)

Options

  • LED machine light
  • Coolant Attacment B
  • Technology Calculator in the Touch Display
  • Maximum Drill Depth Readout
  • MT 4 Spindle instead of MT 3 Spindle
  • Anchoring set
  • Packing disposable
