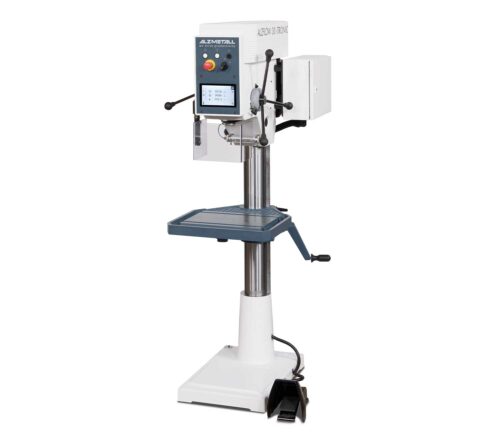

ALZFLOW 30 iTRONIC

Flow Drilling Machines
Product variant: ALZFLOW 30/S

ALZFLOW, AB-FLOW
flowdrilling, chipless drilling

Request product
Machine concept

,

Drilling Capacity Steel E335 (St 60) [mm]

Tapping performance steel E335 (St 60) [mm]

Spindle, short

Distance spindle to column [mm]

Table clamping area [mm]

Distance spindle - table min./max. [mm]

Column diameter [mm]

Z-travel of spindle [mm]

Feed

Power [KW]

Motor 1 [MIN-1]

Spindle Rpm range | Option 1 [U/MIN-1]

Touchscreen

Standard Equipment

  • 7“ TFT – LCD-MULTI-TOUCH Display
  • Tapping auto-reverse w/o foot switch
  • Infinitely variable speed drive
  • Spindle protection
  • Push button for starting the Right turn (CW), Push Button for starting the Left turn (CCW), Push Button for Spindle off
  • EMERGENCY-OFF switch
  • Main switch
  • Right (CW) and Left (CCW) rotation
  • Control Tension 24 Volts
  • Protection Clas IP 54
  • Motor Isolation Class ”F” (155°)
  • Lacquer

Options

  • LED machine light
  • Foot Pedal Reverse Switch for CW and CCW rotations during the tapping process
  • Coolant Attacment B
  • Maximum Drill Depth Readout in the Touch Display
  • Anchoring set
  • Packaging
